Discover the Elevia Compact Platform Lift

A sleek, space-efficient home lift built for comfort, safety, and long-term living.

Get Your Free Info Pack
Request A Home Lift Info Pack

The Elevia Compact Lift offers discreet, space-efficient mobility – without the need for a lift shaft or machine room.

Engineered for domestic living, the Elevia is a self-contained platform lift that combines quiet operation, a small footprint, and flexible placement options. Its modular design means it can be installed quickly, with minimal disruption to your home. Whether you’re future-proofing your property or simply looking for a more elegant way to move between floors, the Elevia offers a modern alternative to conventional stairlifts and full-sized lifts.

Elevia Compact Lift at a Glance

No Shaft or Machine Room

Self-contained system with no need for separate shaft, pit or motor space.

Screw-Driven System

Proven screw-and-nut drive ensures smooth, quiet, low-maintenance operation.

Low Noise

Engineered for quiet performance—suitable for daily use in living spaces.

Compact Footprint

Fits within a floor opening from approx. 1 m² — ideal for smaller homes.

Customisable Finish

Panels, colours, flooring and glazing options to match your interior.

Quick Installation

Modular design allows for 2–5 day installation with minimal disruption.

Design That Fits Your Home

The Elevia isn’t just practical — it’s designed to blend with your space.

From understated finishes to bold statement options, the Elevia can be configured to suit a wide range of interiors. Key design options include:

  • Platform panels: Choose from steel, textile, or wood
  • Colours: Nearly 300 RAL or premium colour options
  • Glazing: Clear or tinted shaft panels for added visibility or privacy
  • Flooring: Select from 9 safety surfaces or fit your own (up to 20mm)
  • Lighting: Integrated LED lighting at the floor and control panel

Whether your style is minimalist or traditional, the Elevia’s clean lines and finish options allow it to feel like part of the home — not an addition to it.

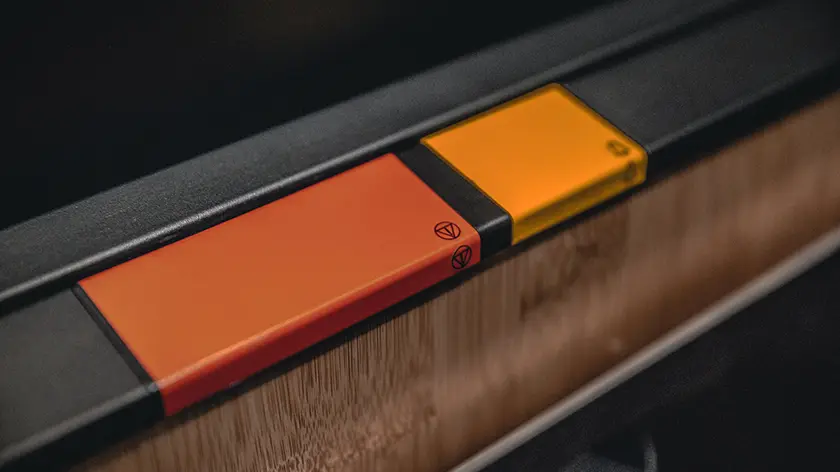

Elevia Compact Lift with design finish options

Efficient Installation, Minimal Disruption

Delivered in modular form, the Elevia can be installed in just a few days without major building works.

There’s no need for a lift shaft, pit, or machine room. All components are built into the lift structure itself, allowing for a fast and clean installation — even in existing homes.

A shallow 50–70 mm recess is ideal for flush flooring, though a small access ramp can be used instead. Standard power supply (230V) and low energy consumption make electrical prep simple.

Most two-stop installations are completed in 2–3 working days, coordinated by trained specialists for a smooth handover.

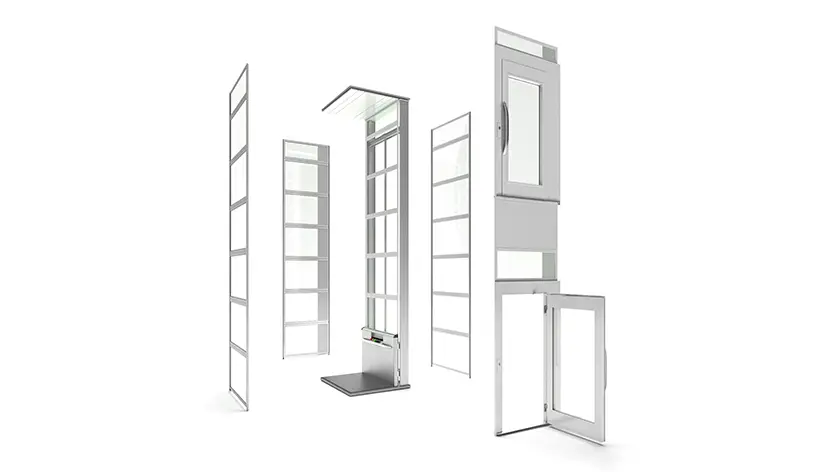

Modular installation of the Elevia Compact Lift

Smooth, Quiet, and Reliable Operation

The Elevia is designed for everyday use — combining quiet performance with intuitive controls.

Its screw-and-nut drive system ensures a smooth ride and requires little ongoing maintenance. Because all mechanical components are built into the lift itself, there’s no need for a separate motor room or bulky cabinet.

Inside, the controls are integrated into the handrail for ergonomic access. Users simply press and hold to travel between floors, while external controls offer one-touch simplicity.

A clean 7-inch mirrored display provides clear floor indicators, enhancing usability while maintaining a clean, modern aesthetic.

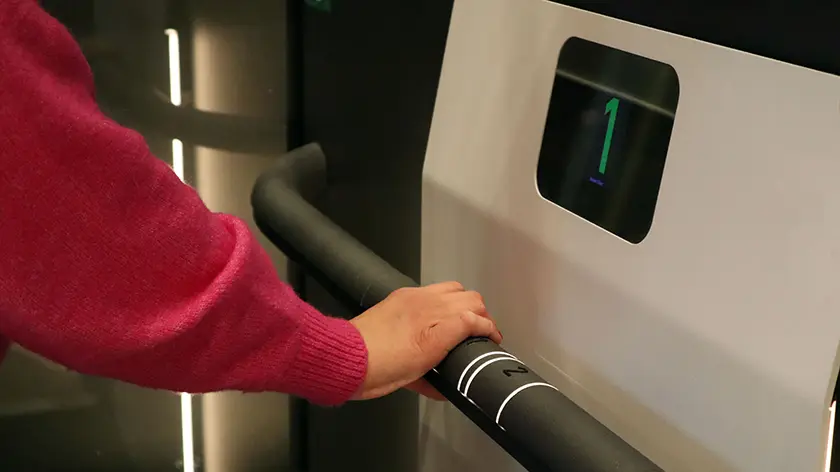

Elevia lift control panel and handrail operation

Safety You Can Trust

The Elevia Compact Lift is built with user protection in mind, meeting key European safety standards and offering features designed for peace of mind in everyday use.

  • Emergency stop and alarm functions
  • Safety edges and obstruction detection
  • Battery backup and manual lowering
  • Overload protection and safety brake
  • Key switch access control

The Elevia complies with the Machinery Directive 2006/42/EC and EN 81-41 for platform lifts. Fire-rated door and shaft options are also available where required — making it suitable for a wide range of domestic and accessibility needs.

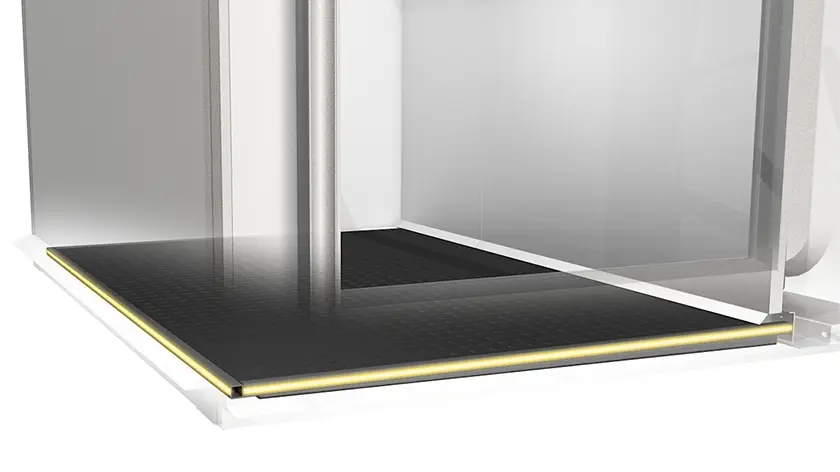

Elevia lift safety features for residential use

Technical Specifications

Drive System Screw and nut drive
Load Capacity 300 / 400 / 500 kg (model dependent)
Max Travel Up to 15,000 mm
Stops Up to 6 stops
Cab Size Varies by model – compact platform design
Entry Single, adjacent or through-entry options
Cab Height 2300 mm (top floor with full-height door)
Floor Opening Approx. 1 m² – varies by configuration
Noise Level Low noise operation – exact dB not specified
Power Supply 1 × 230 VAC / 3 × 230 VAC / 3 × 400 VAC, 50 Hz, 16 A
Motor Power 2.2 kW
Machine Room Integrated (MRL)
Compliance Code EN 81-41 / Machinery Directive 2006/42/EC
Door Operation Manual or automatic options available

Frequently Asked Questions

The Elevia requires a compact footprint and can typically be installed with a lift pit of just 50 mm or none at all. Its self-contained shaft fits easily into most homes, even where space is limited.

Yes. The Elevia offers nearly 300 colour options and a range of panel materials including steel, glass, wood, and textiles. You can also customise the lighting and flooring to suit your interior style.

No. The screw-and-nut drive system provides a smooth, quiet ride with minimal vibration—making it suitable for everyday residential use.

Installation usually takes 2 to 3 days for a standard two-stop lift, thanks to the modular design and minimal building work required.

The Elevia is available in load capacities of 300 kg, 400 kg, or 500 kg depending on the model—ideal for one or two passengers, or wheelchair use.

No. The Elevia’s drive system is fully contained within the shaft, meaning there’s no need for a separate machine room or control cabinet.

Yes. The Elevia comes with battery backup and manual lowering so users can exit safely during a power outage. It also includes key safety features like emergency brakes and obstruction detection.

Often, yes. Because the Elevia requires minimal structural work, it can be suitable for heritage or retrofit installations—subject to approval from your local authority or conservation officer.

Annual servicing is recommended to keep the lift running at its best. The screw-and-nut drive is low maintenance compared to other systems.

Is the Elevia Home Lift Right for You?

The Elevia Compact Platform Home Lift offers a refined balance of form, function, and flexibility. With its compact dimensions, advanced safety systems, and wide design customisation, it represents a highly practical solution for homeowners seeking to improve accessibility and future-proof their properties. Whether installed as part of a modern renovation or as a retrofit upgrade, the Elevia is a strong choice for everyday residential living in the UK.
